Waterbox Aquariums
MARINE X 90.3
• Höhe mit Schrank: 1450 mm / 57,1"
• Anzeigelautstärke: 224 L/59,3 Gallonen
• Volle Lautstärke: 322 L/85,0 Gallonen
• Glasstärke: 12 mm
• Beinhaltet: Aquarium, Schrank, Sumpf, Sanitär-Kit, Filtersocken, Socken-Schalldämpfer
Vollständige Spezifikationen anzeigen
Der Bildschirm
Ein makelloses Seherlebnis

Rimless
Rimless aquariums provide a modern look with an unobstructed viewing experience.

Ultra-Clear Glass
Offers 91% light transmittance and complete visual clarity up to 19mm (3/4”).

High Strength Black Silicone
Creates clean lines and provides your aquarium with the longevity it needs.

Central Overflow
Dual returns and a removable weir comb allow for easy maintenance and just the right amount of flow.

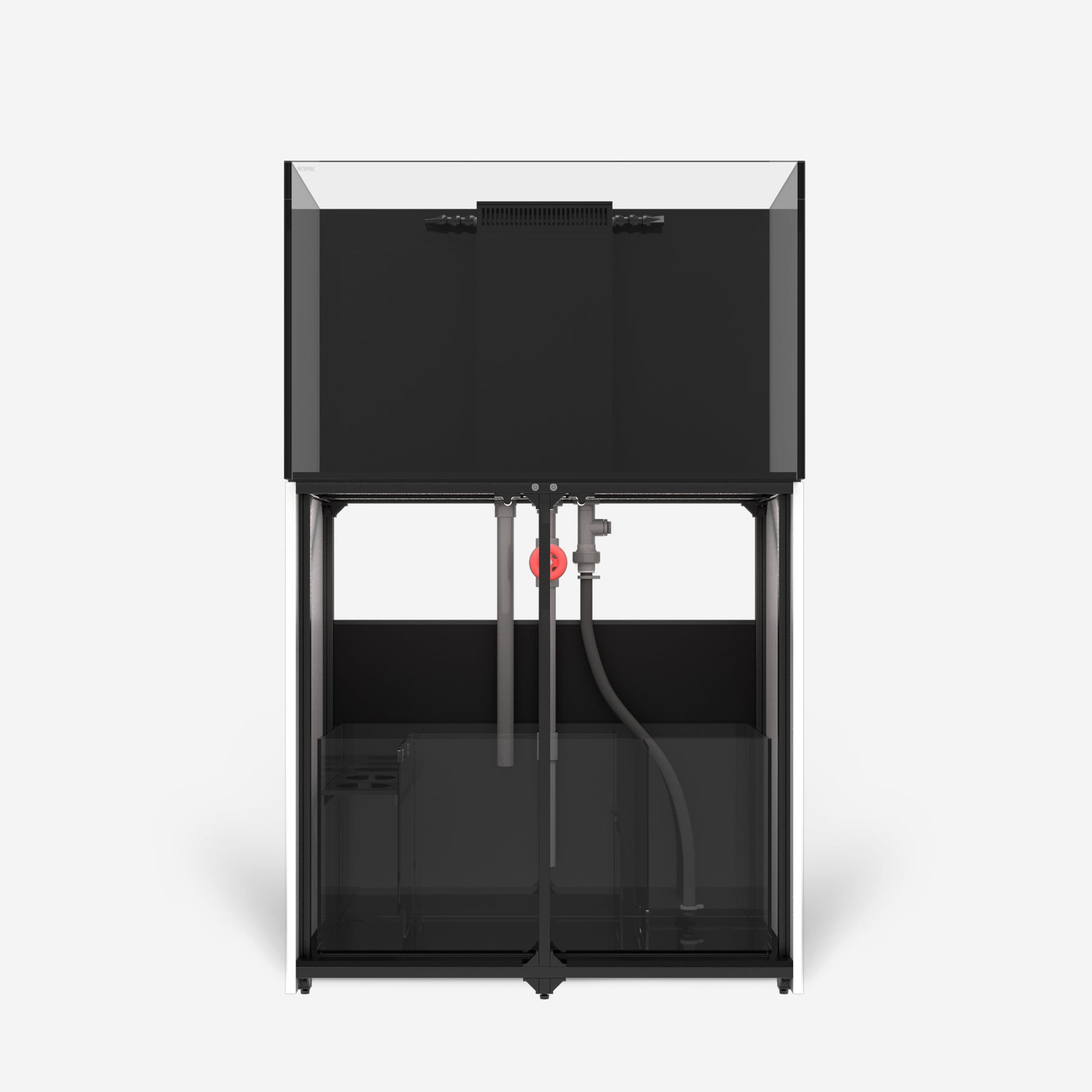

Die Klempnerarbeit
Ein sicherer und leiser Betrieb


Safety Drain
Prevents overflowing of the aquarium.
Main Drain
Directs water to the sump filtration system.
Return Line
Equipped with dual adjustable nozzles for precise water flow.
Die Klempnerarbeit
Leicht zusammenzubauen


Downflow Drain System
Provides the ability to push higher flow rates through the drain.

Quick Connect Fittings
Assembly is quick and easy with no gluing required.

Precision Overflow Valve
Allows for precise adjustments through main drain ensuring quiet operation.
Der Sumpf
Entworfen für Einfachheit und Funktionalität


Filter Sock Filtration
Our 225 micron felt socks will keep the water in as clean and clear as the glass itself.

Skimmer & Media Reactor Chamber
Ample space for the industry's leading skimmers and reactors.

RO Reservoir
Integrated reservoir for ease of maintenance using an electronic top-off system.

Return Pump Chamber
Adequate space for most common aquarium return pumps.

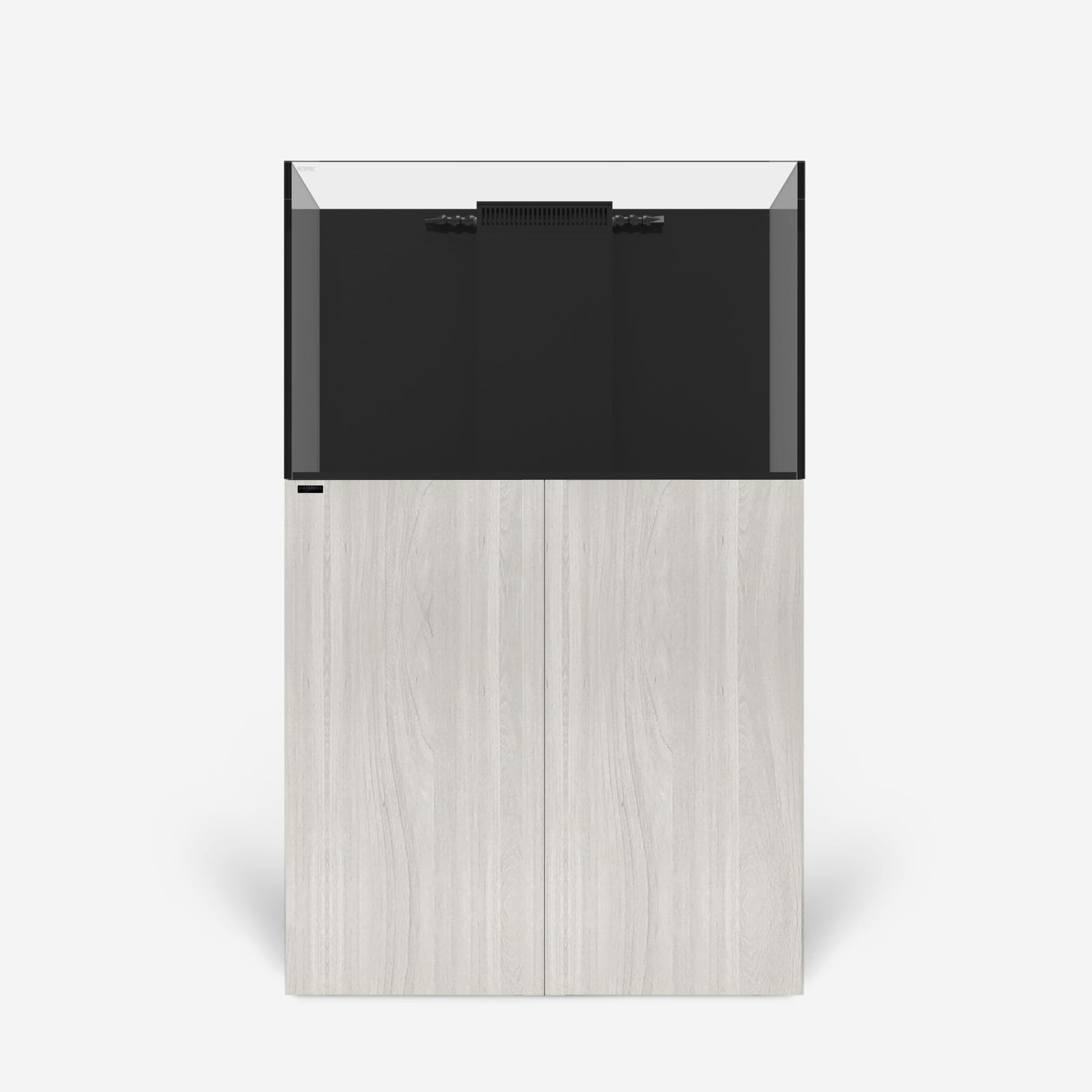

Das Kabinett
Stärke und Haltbarkeit
Wir präsentieren unser neues Schranksystem in Marinequalität. Präsentiert Stärke, Haltbarkeit und Korrosionsbeständigkeit. Mit langlebiger Leistung im Kern wurde diese Serie entwickelt, um den Test der Zeit zu bestehen.


Aluminum Framed
Constructed with 20 mm aluminum framing to easily withstand the weight and humidity of your aquarium system.

Laminated Finish
Laminated wood panels skirt the aluminum framing for a sleek, modern look.

Adjustable Leveling Feet
An easy and effective way to ensure your aquarium is level, front to back and side-to-side.

Accessibility
The open back design allows for optimal ventilation and easy cord routing.
Finanzierung
Riff jetzt. Später bezahlen.
Waterbox bietet jetzt zwei bequeme Möglichkeiten, Ihren Aquarienkauf im Laufe der Zeit zu bezahlen.
Technische Spezifikationen
Produktmodell | MARINE X 60.2 Gen2 | MARINE X 90.3 Gen2 | MARINE X 110.4 Gen2 | |
---|---|---|---|---|
System | Höhe mit Schrank | 1.400 mm/55,6" | 1.450 mm/57,1" | 1.450 mm/57,1" |
Gesamtvolumen mit RO | 211 L/55,6 Gallonen | 342 L/90,2 Gallonen | 418 L/110,5 Gallonen | |
Anzeige Panzer |
Tankabmessungen | 600 x 500 x 500 mm | 900 x 500 x 550 mm | 1.200 x 500 x 550 mm |
23,6" × 19,7" × 19,7" | 35,4" × 19,7" × 21,7" | 47,2" × 19,7" × 21,7" | ||
Glasdicke | 10mm (2/5") | 12mm (1/2") | 12mm (1/2") | |
Aquarienvolumen | 136 L/36 Gallonen | 224 L/59,3 Gallonen | 301 L/79,6 Gallonen | |
Glasmaterial | Ultraklares eisenarmes Glas (Front und Seiten) | |||
Übertragung | 91% | |||
Im Schrank Sumpf |
Maße | 510 x 410 x 380 mm | 800 x 410 x 380 mm | |
20,1" × 16,1" × 15" | 31,5" × 16,1 × 15" | |||
Sumpfvolumen | 74 L/19,6 Gallonen | 117 L/31 Gallonen | ||
Glasdicke | 6mm (1/4") | 6mm (1/4") | ||
Skimmerkammer (Int. Abmessungen) |
308 x 258 mm | 388 x 343 mm | ||
12,1" × 10,2" | 15,3" × 13,5" | |||
Pumpenkammer (Int. Abmessungen) |
140 x 210 mm | 210 x 150 mm | ||
5,5" × 8,3" | 8,3" × 5,9" | |||
RO-Reservoir (Int. Abmessungen) |
140 x 183 x 359 mm | 210 x 243 x 359 mm | ||
5,5" × 7,2" × 14,1" | 8,3" × 9,6" × 14,1" | |||
RO-Volumen | 9,2 l/2,4 Gallonen | 18,3 l/4,8 Gallonen | ||
Installation | Haupt Abfluss | DN20 (25mm/1") | DN25 (32mm/1-1/4") | |
Notüberlauf | DN20 (25mm/1") | DN25 (32mm/1-1/4") | ||
Pumpenrücklauf | DN20 (25mm/1") | DN20 (25mm/1") | ||
Düse(n) | 2 x DN15 (20mm/3/4") | |||
Vormontierte Verrohrung mit Notüberlauf | ||||
Hochpräzises Durchflussventil | ||||
Richtungsdüsen mit doppeltem Rücklauf | 2 x DN15 (20mm/3/4") | |||
Filtration | 225-Mikron-Fileter-Socken | 1 x 105 mm/4" NETZ | 2 x 105 mm/4" NETZ | |
Filtersocke Schalldämpfer | 1x105mm/4" | 2x105mm/4" | ||
Geräuschreduzierender Überlaufdeckel | x 1 | x 2 | ||
Kabinett | Schrankmodell | Alu 2420 | Alu 3620 | Alu 4820 |
Schrankabmessungen | 600 x 500 x 900 mm | 900 x 500 x 900 mm | 1.200 x 500 x 900 mm | |
23,6" × 19,7" × 35,4" | 35,4" × 19,7" × 35,4" | 47,2" × 19,7" × 35,4" | ||
Sumpffach (Int. Abmessungen) |
524 x 468 x 813 mm | 824 x 448 x 813 mm | 1.124 x 440 x 813 mm | |
20,6" × 18,4" × 32" | 32,4" × 17,6" × 32" | 44,3" × 16,5" × 32" | ||
Kabinett Rahmen | Korrosionsbeständige Aluminiumlegierung | |||
Tür- und Seitenverkleidungen | 18 mm PVC-laminierte Holzspanplatte | |||
Untere Platten | 10 mm PVC-Platte | |||
Rückwände | 6 mm PVC-Platte | |||
Schrankfarbe | WHT-Weiß, BLK-Schwarz, ASP-Espe | |||
Scharniere aus SUS304 | ||||
Nivellierfüße | ||||
Optional Zubehör |
Verteilersatz (optional) | Verteiler 15 (Einzelauslass) |
Verteiler 15 (Einzelauslass) Verteiler 15D (Doppelauslass) |
|
Mesh-Aquariumdeckel (optional) | MTMX60.2 | MTMX 90.3 | MTMX 110.4 |
