Waterbox Aquariums

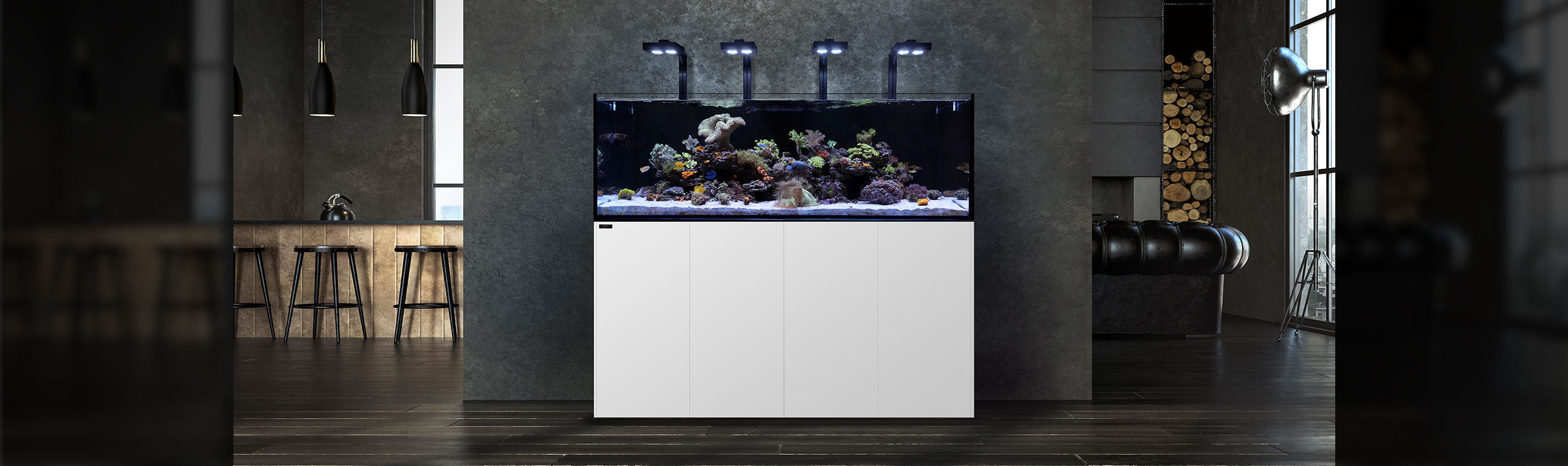

REEF 130.4
• Height with Cabinet: 1450mm/57"
• Display Volume: 364 L/96.3 gals
• Total Volume: 480 L/126.9 gals
• Glass Thickness: 12mm
• Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
AQUARIUM
Our Most Loved Aquarium
Waterbox REEF™ systems provide hobbyist a customizable foundation to design their dream aquarium. The most loved aquarium in the industry makes you fall in love again with aquatics.
Full Glass Overflow
Overflow boxes are constructed entirely of glass with water-etched weir teeth.
Dual Adjustable Return Nozzles
Each side of the glass overflow box features adjustable return nozzles for precise water agitation.
Overflow Lid
Each Waterbox has an overflow cover with unique branding.
Ultra Low Iron Glass
Our aquariums are all manufactured using Low Iron Ultra Clear glass that is diamond beveled providing 91% transmittance.
High Strength Silicone
Manufactured using german made Wacker silicone will provide your aquarium with the longevity it needs.
Standard 90 Degree Joints
Manufactured using the standard aquarium manufacturing joints for maximum durability and strength.
Plumbing
Plumbing Simplified
Our engineers have designed the REEF™ with a ready to assemble plumbing kit that provides easy installation without any gluing required.
Quick Connect Assembly
Assembly is quick and easy with no gluing required.
Precision Gate Valve
Controls the flow through the drains, ensuring quiet operation.
Dual Manifold
Additional valves available for optional equipment.
*REEF 100.3 and REEF 130.4 have single manifold.
*REEF 180.5 and REEF 220.6 have dual manifold.
Safety Drain
Diverts water into the filtration compartment preventing an overflow, in the event of a clog.
Flexible Return Line
Accommodates your choice of return pump by using a flexible hose.
FILTRATION
A Reef Ready Sump System
The REEF™ system shines above the rest with our thoughtfully designed, sized and placed sump system.
Filtration
Included are filter socks for filtering out debris and particulates with sock silencer for a quieter system.
REEF 100.3 and REEF 130.4:
Include two 4" Micron Felt Filter Socks.
REEF 180.5 and REEF 220.6:
Include two 7" Micron Felt Filter Socks.
Pre-Cut Filter Sponge
Increases filtration and reduces micro-bubbles in the system.
Evaporation Reservoir
The sump system has a dedicated chamber for the use of an auto top-off controller.
REEF 180.5 and REEF 220.6 :
Include a separate 13.1G reservoir.
Removable Refugium Baffle
Provides the option to utilize a refugium for nutrient export.
*Available on the REEF 180.5 and REEF 220.6.
REEF
100 to 220 Gallons
REEF
Technical Specifications
| Product Model | REEF 100.3 | REEF 130.4 | REEF 180.5 | REEF 220.6 | |
|---|---|---|---|---|---|
| Display |
Dimensions (Length x Width x Height) |
900 x 600 x 550mm | 1200 x 600 x 550mm | 1536 x 643 x 550mm | 1836 x 643 x 600mm |
| 35.4"×23.6"×21.7" | 47.2"×23.6"×21.7" | 60.5"×25.3"×21.7" | 72.3"×25.3"×23.6" | ||
| Glass Thickness | 12mm (1/2") | 12mm (1/2") | 15mm (3/5″) | 19mm (3/4") | |
| Water Height | 535mm/21.1" | 535mm/21.1" | 535mm/21.1" | 585mm/23.0" | |
| Aquarium Volume | 271 L/71.7 gals | 364 L/96.3 gals | 494 L/130.5 gals | 632 L/167 gals | |
| Aquarium Weight | 105.0 kg / 231.5 lb | 126.0 kg / 277.8 lb | 189.0 kg / 416.7 lb | 277.0 kg / 610.7 lb | |
| Glass Material | Ultra-clear glass | ||||
| Transmittance | 91% | ||||
| Sump | Sump Dimensions (Length x Width x Height) |
720 x 450 x 380mm | 720 x 450 x 380mm | 820 x 485 x 380mm | 820 x 485 x 380mm |
| 28.3"×17.7"×15" | 28.3"×17.7"×15" | 32.3"×19.1"×15" | 32.3"×19.1"×15" | ||
| Sump Volume | 116 L/30.6 gals | 116 L/30.6 gals | 140 L/37.1 gals | 140 L/37.1 gals | |
| Sump Weight | 29.0 kg / 63.9 lb | 29.0 kg / 63.9 lb | 41.0 kg / 90.4 lb | 41.0 kg / 90.4 lb | |
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | 8mm (5/16") | 8mm (5/16") | |
| Refugium | - | - | Yes | Yes | |
| Skimmer Chamber with Refugium | - | - | 255 x 397mm | 255 x 397mm | |
| 10"×15.6" | 10"×15.6" | ||||
| Refugium Chamber | - | - | 208 x 397mm | 208 x 397mm | |
| 8.2"×15.6" | 8.2"×15.6" | ||||
| Skimmer Chamber w/o Refugium | 330 x 438mm | 330 x 438mm | 397 x 469mm | 397 x 469mm | |
| 13"×17.2" | 13"×17.2" | 15.6"×18.5" | 15.6"×18.5" | ||
| RO Reservoir Dimensions (Length x Width x Height) |
192 x 246 x 359mm | 192 x 246 x 359mm | ATO Tank | ATO Tank | |
| 7.6"×9.7"×14.1" | 7.6"×9.7"×14.1" | ||||
| RO Volume | 17 L/4.5 gals | 17 L/4.5 gals | |||
| Pump Chamber | 240 x 200mm | 240 x 200mm | 469 x 158mm | 469 x 158mm | |
| 9.4"×7.9" | 9.4"×7.9" | 18.5"×6.2" | 18.5"×6.2" | ||
| ATO | ATO Dimensions (Length x Width x Height) |
- | - | 360 x 420 x 350mm | 360 x 420 x 350mm |
| 14.2"×16.5"×13.8" | 14.2"×16.5"×13.8" | ||||
| ATO Volume | 50 L/13.1 gals | 50 L/13.1 gals | |||
| ATO Weight | 9.0 kg / 19.8 lb | 9.0 kg / 19.8 lb | |||
| Glass Thickness | 5mm (3/16") | 5mm (3/16") | |||
| Plumbing | Main Drain | DN25 | DN25 | DN32 | DN32 |
| Emergency Overflow | DN25 | DN25 | DN32 | DN32 | |
| Pump Return | DN20 | DN20 | DN25 | DN25 | |
| Nozzles | DN15 x 2 | DN15 x 2 | DN15 x 2 | DN15 x 2 | |
| Filter Socks | 105mm/4" x 2 | 105mm/4" x 2 | 180mm/7" x 2 | 180mm/7" x 2 | |
| Cabinet | Cabinet Model | UV 3624 | UV 4824 | UV 6025 | UV 7225 |
| Cabinet Dimensions (Length x Width x Height) |
900 x 600 x 900mm | 1200 x 600 x 900mm | 1536 x 643 x 900mm | 1836 x 643 x 900mm | |
| 35.4"×23.7"×35.4" | 47.2"×23.7"×35.4" | 60.5"×25.3"×35.4" | 72.3"×25.3"×35.4" | ||
| Sump Compartment Inner Dimensions | 810 x 560mm | 768 x 560mm | 915 x 605mm | 815 x 605mm | |
| 31.9"×22" | 30.2"×22" | 36"×23.8" | 32.1"×23.8" | ||
| Material | 18mm solid plywood | ||||
| Paint (side & front) | PU Painting | ||||
| Color | W-White, B-Black | ||||
| Cabinet Weight | 58 kg / 127.9 lb | 69 kg / 152.1 lb | 84 kg / 185.1 lb | 105 kg / 231.5 lb | |
| System | Height with Cabinet | 1450mm/57" | 1450mm/57" | 1450mm/57.1" | 1500mm/59.1" |
| Total Volume | 387 L/102.4 gals | 480 L/126.9 gals | 675 L/178 gals | 813 L/215 gals | |
